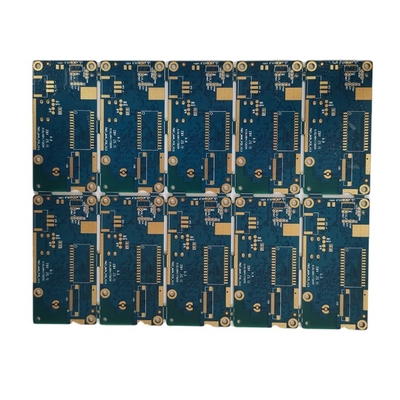

Hot Selling FR4 Customization AOI Test Smt Manufacturing High Quality PCB For Telecommunication

1.0 Units
MOQ
Hot Selling FR4 Customization AOI Test Smt Manufacturing High Quality PCB For Telecommunication
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: Customer Model
Base Material: FR4,Aluminum,Middle tg FR4,Hi-Tg FR4
Copper Thickness: 0.25- 6OZ
Board Thickness: 0.05-5.0mm
Min. Hole Size: 8mil(0.2mm) 3mil(0.075mm)
Min. Line Width: 0.05mm (2mil)
Min. Line Spacing: 0.05mm (2mil)
Surface Finishing: ENIG, HASL, OSP
Board Size: Color: Green,Blue,Black, White, Red and others
PCB Standard: IPC-A-600, IPC-6012
PCB Special Process: Buried Hole, Blind Hole, Embedded Resistance
PCB Min. impedance tolerance: ±5%
PCB Min. BGA spacing: 0.075mm
Aspect Ratio: 18/1
Board size: 100*100mm to 508*762mm
Board hardness: 6h
Testing: AOI Test,E-test,Functional test
Certificate: ISO9001/ISO13485/IATF16949/ROHS
Package: Inner vacuum or plastic package,outer Carton box package
Основная информация
Сертификация: ISO9001/ISO13485/IATF16949/ROHS
Model Number: Customer Model
Оплата и доставка Условия
Packaging Details: Inner vacuum or plastic package,outer Carton box package
Supply Ability: 100000 Unit/Units per Week
Характер продукции
item
value
Model Number
Customer Model
Place of Origin
China
Brand Name
Suteng
Base Material
FR4,Aluminum,Middle tg FR4,Hi-Tg FR4
Copper Thickness
0.25- 6OZ
Board Thickness
0.05-5.0mm
Min. Hole Size
8mil(0.2mm) 3mil(0.075mm)
Min. Line Width
0.05mm (2mil)
Min. Line Spacing
0.05mm (2mil)
Surface Finishing
ENIG, HASL, OSP
Board Size
Color: Green,Blue,Black, White, Red and others
PCB Standard
IPC-A-600, IPC-6012
PCB Special Process
Buried Hole, Blind Hole, Embedded Resistance
PCB Min. impedance tolerance
±5%
PCB Min. BGA spacing
0.075mm
Aspect Ratio
18/1
Board size
100*100mm to 508*762mm
Board hardness
6h
Testing
AOI Test,E-test,Functional test
Certificate
ISO9001/ISO13485/IATF16949/ROHS/SGS
Package
Inner vacuum or plastic package,outer Carton box package
Product description
Model Number:
According to customers
Surface Finishing:
ENIG，HASL,OSP
Supplier Type:
Manufacturer
PCB/PCBA Testing:
AOI Test, E-test, Functional test
Base Material:
FR4, Aluminum, Mid-tg FR4, Hi-Tg FR4
Package:
Inner vacuum or plastic package, outer Carton box package
Layer Count:
1～36ayers
PCB Standard:
IPC-A-600, IPC-6012
Copper Thickness:
0.25- 6OZ
Certificate:
ISO9001/ISO13485/IATF16949/ROHS/SGS
Board Thickness:
0.05～5.0mm
Brand Name:
Hangzhou Suteng Circuit
Min. Line Spacing:
0.05mm (2mil)
PCB/PCBA service:
One Stop Turnkey PCB/PCBA Service
Min. Line Width:
0.05mm (2mil)
Place of Origin:
Zhejiang,China
Min Hole Diameter:
0.075mm
Service:
PCB，PCBA, Box build
Solder mask color:
Green,Blue,Black, White, Red and more
MOQ:
1pcs
Solder mask hardness:
6H
Logistic:
Express, air or sea
PCB capabilities
Layers
1～36ayers
Max. Thickness
6OZ
Max. Board Thickness
5.0mm
Min. Board Thickness
0.05 mm
Base Material
FR4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled , Teflon, Polyimide
Min. Width/Spacin
Inner layer: 2mil/2mil (HOZ), Outer layer: 3mil/3mil(1OZ)
Min. Hole Size
Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm)
Maximum Board Size
508× 762mm
Minimum plate size
100× 100mm
Aspect Ratio
18:01
Surface Finish
HASL, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger
Special Process
Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and
Resistance control.
Min. impedance tolerance
±5%
Min. BGA spacing
0.075mm
PCBA capacity
Automatic Printer
Base size :458mm(L)X356mm(W)大50mm(L)X50 mm(W)
Min speed: 1~300mm/s
Accuracy: ±0.025mm
SMT
Speed: 40000cpH 0.09Second
PCB size: 460(L) x 400(W) 510(L) x 460(W) (Optional), 610(L) x 510(W)(Optional), 740(L) x 460(W)(Optional)
Size: Min 0201, Max30X30inch
Blow height 25.4mm
PCB thickness: 0.38-4.2mm
SMT capacity: 3Million welding spot/day
Base type: POP/Board/FPC/Rigid-Flex/Metal base
Attrition rat: Resistor-Capacitor 0.3%, IC 0%
Accuracy: ±0.04mm
Reflow oven
PCB max width: 270mm×2(Single channel 50-490mm)
Heating time: 30mins
Temperature: room -300°C
Speed: 300-2000mm/min
Fault warning: low or high temperature, voice or light warning
Heat/cool zone: Up 10\down 10 heating zone, up 2 cooling zone
Reflow: lead solder, lead free solder
AOI
PCB size: 450mm(L)X400mm(W) , big 50mm(L)X50mm(W). Min thickness:1mm~3mm
FOV/Resolution: 4Megan Pixels FOV:37.237.2mm Resolution:18.2um/pixel
Speed: 4.940mX4.940m/Sec
Min: 0201chip/0.4pitch IC(mm)
Wave soldering machine
Pre heating: below15mins
Temperature: room -280°C
PCB width:50~350mm
Base bottom space: Up 120mm, Down 25mm
Speed: 0-1800mm/min
Pre heating No. & method :3 bottom hot wind pre heating
Temperature control of pre heating: PID closed loop control+SSR drive
Control method: Auto computer control, Windows7
Spray system: built-in air-blast atomizer
Transport claw: titanium alloy double claw
Solder pot running method: mechanical
Cooling method: Air cooling
