CNC Router Kits 4axis NEMA 34 Stepper Motor Closed Loop CNC Router And Mill-stepper Motor 4n.m With Hss86 Driver Nema 34 Stepper Motor Kits closed loop

1 Piece
MOQ
$320.00(1 - 99 Pieces) $285.00(100 - 299 Pieces) $200.00(>=300 Pieces)
цена
CNC Router Kits 4axis NEMA 34 Stepper Motor Closed Loop CNC Router And Mill-stepper Motor 4n.m With Hss86 Driver Nema 34 Stepper Motor Kits closed loop
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Warranty: 1 YEAR
Model Number: Nema 34 Closed Loop stepper motor kits
Phase: 2
Type: Hybrid
Current / Phase: 6A
Product name: Nema 34 Closed Loop Stepper Motor
Step angle: 1.8 degree
Motor length: 78mm-155mm
Current: 6A
Resistance: 0.27Ω - 0.44Ω
Inductance: 2mH - 3.8mH
Holding torque: 4.6N.m - 13N.m
Number of leads: 4
Detent torque: 1.2kg.cm - 3.6kg.cm
Key words: 3axis 4axis stepper motor kits
Основная информация
Model Number: Nema 34 Closed Loop stepper motor kits
Оплата и доставка Условия
Packaging Details: The sample is packed in carton,the batch with plastic pallet
Supply Ability: 10000 Piece/Pieces per Week
Характер продукции
Specification
Item
Specifications
Step Angle
1.8°
Temperature Rise
80℃max
Ambient Temperature
-20℃~+50℃
Insulation Resistance
100 MΩ Min. ,500VDC
Dielectric Strength
500VAC for 1minute
Shaft Radial Play
0.02Max. (450g-load)
Shaft Axial Play
0.08Max. (450g-load)
Max. radial force
220N (20mm from the flange)
Max. axial force
60N
Model No.
Step Angle
Motor Length
Current/Phase
Resistance/Phase
Inductance/Phase
Holding Torque
# of Leads
Detent Torque
Rotor Inertia
( °)
(L)mm
A
Ω
mH
N.m
No.
Kg.cm
g.cm²
JK86HSN45
1.8
78
6
0.27
2
4.6
4
1.2
1400
JK86HSN65
1.8
100
6
0.27
2.2
6.8
4
1.9
2200
JK86HSN85
1.8
115
6
0.36
3.8
8.5
4
2.4
2700
JK86HSN120
1.8
155
6
0.44
3.8
12.5
4
3.6
4000

Above only for representative products, products of special request can be made according to the customer request.

Suitable Power Supply Parameters:
Power Supply Model
Input voltage
Ouput voltage
Power
Weight
Size
S-300-48
AC110V/220V
DC48V
300W
0.7kg
215*115*50mm
S-1000-48
AC110V/220V
DC48V
1000W
1.5kg
245*245*65mm
S-360-60
AC110V/220V
DC60V
360W
0.7kg
215*115*50mm
S-1200-60
AC110V/220V
DC60V
1200W
1.5kg
245*245*65mm

Power Supply Features:

This series of products has strong versatility and can be applied to various types of products such as lamps, monitoring, security, communication equipment, etc.

You may receive:

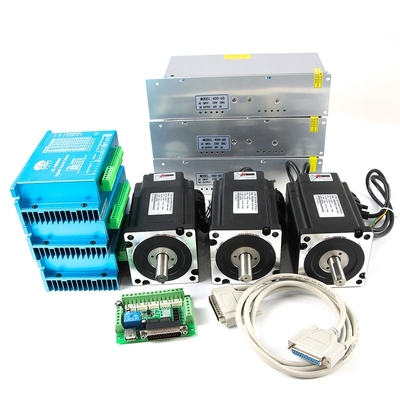

1. 3Pcs Nema 34 Closed Loop Stepper Motor + 3Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts
2. 3Pcs Nema 34 Closed Loop Stepper Motor + 1Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts
No.
Output Voltage
Motor Quantity
Supply Quantity
Driver
Other
1
48V
3pcs closed loop motor
3pcs ——300W
3pcs —— JK-HSD86
board + cable + usb
2
48V
3pcs closed loop motor
1pcs ——1000W
3pcs —— JK-HSD86
3
60V
3pcs closed loop motor
3pcs ——360W
3pcs —— JK-HSD86
4
60V
3pcs closed loop motor
1pcs ——1200W
3pcs —— JK-HSD86

Motor Features:

1. Low heat (static, the current is almost zero, no heat).
2.Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the
traditional stepping motor troubled low frequency resonance has a very good resistance).
3. Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine /
placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
4. Large torque output in some cases can simplify the complexity of the machine.

Application:

JKONGMOTOR’s stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical
devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.


Motor Driver Parameters:
Features
Input voltage
24~80VAC/24~110VDC
Output current
2.4~7.2A (PEAK)
Pulse frequency
0~100KHz
MicroSteps
16 MicroSteps
Using environment
-5~50℃,avoiddust,high teperatureand corrosive gas
Storage environment
-20~+80℃，avoid direct sunlight

Motor Driver Features:

1、The latest 32-bit digital processing technology
2、advanced control algorithm for variable current and variable frequency conversion
3、Low heat generation, low motor vibration and stable operation
4、Built-in micro-segmentation
5、Smooth operation and low noise
6、Integrated parameter power-on auto-tuning functio
7、Subdivision setting (within 400~51200) with overcurrent, overvoltage, undervoltage protection

The characteristic of the output torque:

1) The larger the actual current of the motor, the greater the output torque, but the more copper loss (P=I²R) of the motor, the more heat the motor generates;
2) The higher the supply voltage of the driver, the higher the high-speed torque of the motor;
3) It can be seen from the moment frequency characteristic diagram of the stepping motor that the high speed is smaller than the medium and low speed torque.
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

2. Do you provide the samples?
YES. Our company can provide the samples to you

3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.

4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.

5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
