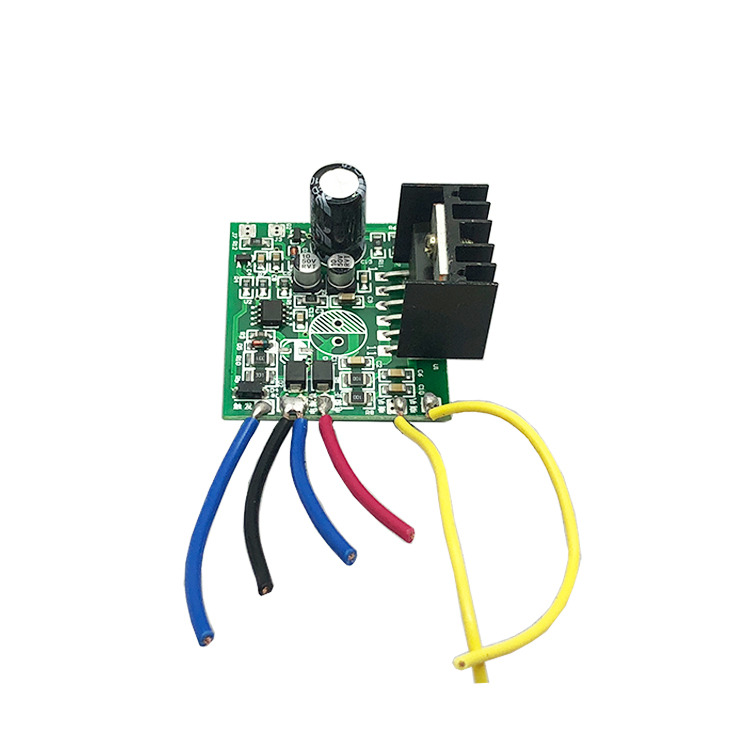

PCB Assembly 94v0 FR4 PCB Inverter Printed Circuit Board and SMT PCB Assembly

1.0 Pieces
MOQ
PCB Assembly 94v0 FR4 PCB Inverter Printed Circuit Board and SMT PCB Assembly
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Model Number: DYC-customized25
Base Material: FR4
Copper Thickness: 0.5-2oz
Board Thickness: 0.6~1.6mm
Min. Hole Size: 0.2mm
Min. Line Width: 3mi
Min. Line Spacing: 0.1um(3mil)
Surface Finishing: HASL/ENIG/OSP
Product name: PCB circuit boards
Application: PCB Assembly
Type: Printed circuit board
Item: OEM/ODM
Solder mask: White Black Green Blue
Silksreen: White
Certificate: ROHS/ISO9001:2008
Other Service: PCB design and prototype
Основная информация
Сертификация: ROHS/ISO9001:2008
Model Number: DYC-customized25
Оплата и доставка Условия
Packaging Details: 34.5*34*32cm
Supply Ability: 60000 Square Meter/Square Meters per Month
Характер продукции

94v0 FR4 pcb inverter printed circuit board and SMT pcb assembly

Our Services

1.   PCB design ,PCB clone and copy ,ODM PCBA service.

2.   Schematic design and Layout

3.   Fast PCB&PCBA prototype and Mass Production

4.   Electronic Components Sourcing Services

5.   PCB Assembly Services:SMT,DIP&THT,BGA repair and reballing

6.   ICT, Constant Temperature Burn-in and Function Test

7.   Stencil,Cables and Enclosure building

8.   Standard Packing and On time Delivery



Product Description

PCBA Capability



Max size of pcb board500* 400mm
Max thickness 3mm
Min thickness0.5mm
Min chip1005
Max SMD components weight100g
Max part height25 mm
Max part size150*150 mm
Min pin space0.3mm
Max BGA components space0.3mm
Max BGA components space0.3mm
Max SMD accuracy25um@ IPC
SMD capacity8 Million point/day



PCB Capability



Layer:1~30 layers

Materials: FR-4, CEM-3, Teflon, Aluminum, Rogers, High Tg

Surface finished:Lead Free HASL,Immersion Gold/Tin/Silver, OSP, Gold Finger Plating, Selective Immersion Gold,Gold Plating



Layer1~30 layers
MaterialsFR-4, CEM-3, Teflon, Aluminum, Rogers, High Tg.
Surface finishedLead Free HASL,Immersion Gold/Tin/Silver, OSP, Gold Finger Plating, Selective Immersion Gold,Gold Plating
Lead time For samples, 3-5 days. For bulk order, 8-12 days.
TestingFlying probe, E-test, visual inspection, testing jig
PCB file format Gerber file, PADS_LOGIC, AD, Protel, Allegro, ORCAD



The Lead Time of Multilayer PCB



2 layer2-3 days
4 layer4-5 days
6 layer6-7 days
8 layer7-8 days
10 layer10- 11 days



Click here to get more information

Company Information

  2007-2018, 11 years, PCB & PCBA One stop service pcb circuit boards



DYC is a PCB&PCBA contract manufacturing with one-stop service. we have 6 Yamaha YS series high-speed assembly machine, 6 sets of fully automatic printing machines, 6 sets of AOI, 6 sets of SPI, 2 DIP lead-free production lines, 4 end-product assembly lines and a large number of advanced inspection and testing instruments. pcb printed circuit board



Established time Aug 2007
Number of emplooyes250
Factory area15,000 sqm
Location:       6,7 floor, Yuxing Second7 floor, Yuxing Second industrial  park, xixiang, Bao'an district, Shenzhen.Near by shenzhen airport,  15 minutes.
Near by Hongkong airport,  74 km.
Near by shekou terminal, 22 km.
Fabrication80 million spot SMT/month.
CertificationISO9001-2008, CE, RoHS.
Sales avenue0.3 billion



Our Test Equipment



We have kinds of test machine to ensure the higher pass rate of the board when our client receive PCB/PCBA.

Click here to get more information



Certifications



FAQ



Q1What should i provide to get one PCB quotation?
A1 Gerber file, PCB technical, quantity.

( Layer, Base material, Finished copper, Finished thickness, Surface finish, Solder mask)


Q2What file formats of PCB do you support?

A2Gerber file, PADS_LOGIC, AD, protel, allegro, Orcad.


Q3Will you check the PCB gerber file before production?

A3Yes, our engineer will check the coordinate file, layout, silkscreen, packing and full design to avoid the design-error.




Q4
My budget is limited, can you provide solutions to save cost ?

A4
Yes, we can. For example:

       a, Replace the DIP components with SMD components, so it can narrow the PCB board size to save cost.

       b, Relayout the pcb to reduce the size, it can save cost.

       c, We can recommend you suitablet PCB tecnical parameter according to the product character, like board materials, thickness etc.



Q5: Do you have any other special discount ?

A5Yes, we provide free panel, free test and free packaging.





Any other questions please contact us directly.As a global supplier of PCB /PCBA,we will meet the needs of customers world wide,with professional technology and sincere spirit of service and reasonable price,  delivery on time. We look forward to your visit and establish long-term cooperation.
